AEON AC SPLIT/1HP/ASA09OJ1/R410
₦277,999.00
This item: AEON AC SPLIT/1HP/ASA09OJ1/R410
₦277,999.00
₦277,999.00
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
2 - DAY DELIVERY
Mar 19 Mar 23
Guaranteed safe & secure checkout
Description
Reviews (0)
AEON Model
ASA09OJ1
Power supply
1Ph / 220-240V/50Hz
Cooling
Capacity
9000
Input
880
Rated current
4.12
Max. input consumption
1200
Max. current
5.74
Compressor
Type
Rotary
Brand
GMCC

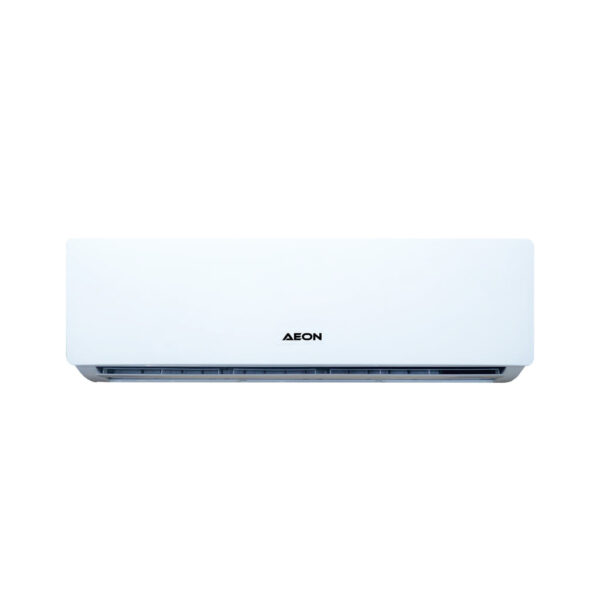

Indoor unit
Indoor fan motor
Model
YYK13-4
Brand
DONGFANG
Output Power
13W
Capacitor
1.5
Speed (Hi/Mi/Lo)
1200/1150/1000/900
Indoor coil
Tube pitch(a)x row pitch(b)
21×12.7
Fin spacing
1.5
Fin material
Hydrophilic
Tube outside dia.and material
φ7，inner Grooved
Coil length x height x width
522*252*12.7
Indoor air flow (Hi/Mi/Lo)
500/400/320
Rated input Power(cooling/heating)
30
Rated current (cooling/heating)
0.2
Moisture Removal
0.8
Noise level(Hi/Mi/Lo)
37/34/32
Unit dimension (W*H*D)
720X292X190
Packing (W*H*D)
785X335X240
Net weight
6.5
Gross weight
7.5

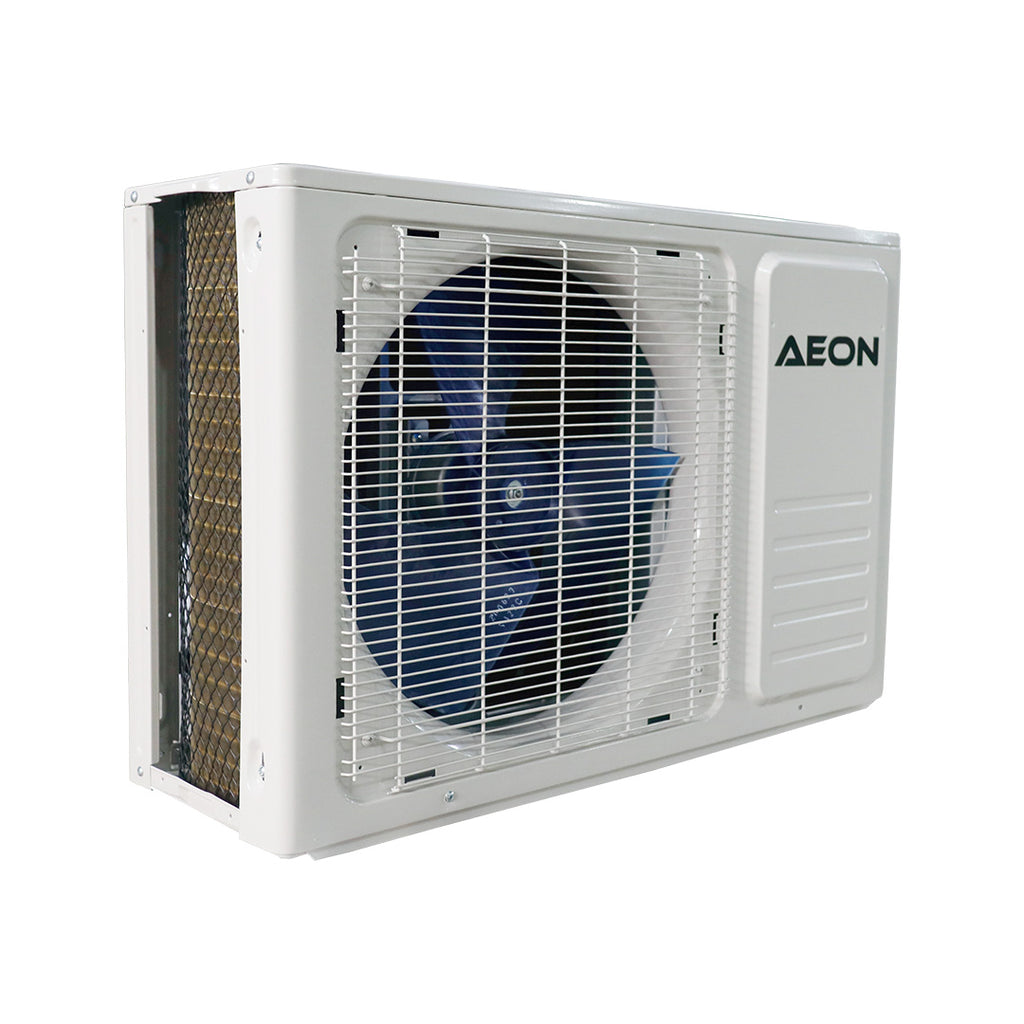

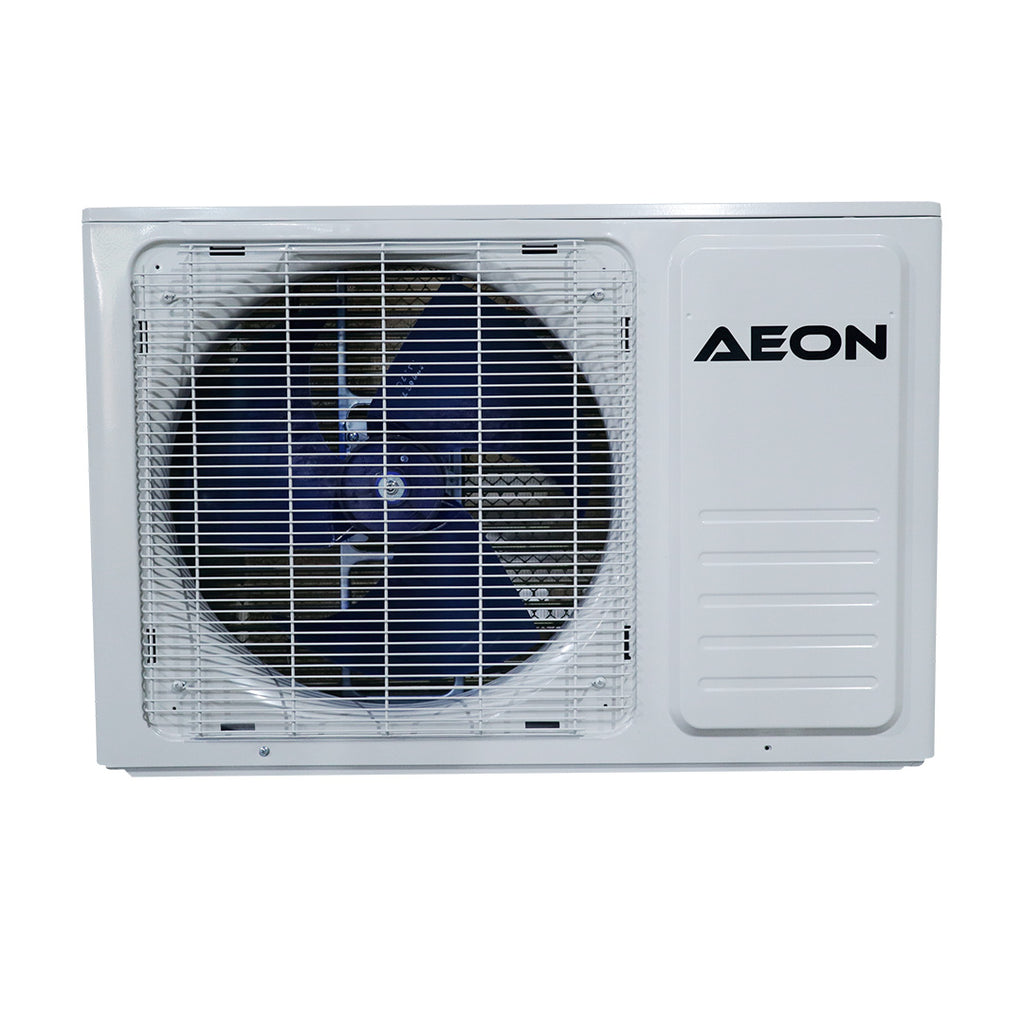

Outdoor unit
Outdoor fan motor
Model
YDK25-6
Brand
DONGFANG
Output Power
25
Capacitor
2.5
Speed
860±30
Outdoor coil
Tube pitch(a)x row pitch(b)
19×11.57
Fin spacing
1.3
Fin material
Non-hydrophilic
Tube outside dia.and material
φ5，Inner Grooved
Coil length x height x width
544×462×11.57
Noise level
47
Unit dimension (W*H*D)
600×248×502
Packing (W*H*D)
745×335×550
Net weight
20.5
Gross weight
23
Refrigerant type
R410A
Refrigerant charge
405
Design pressure
4.5
Refrigerant pipe
Liquid side
Φ6
Gas side
Φ9
Max. refrigerant pipe length
10
Max. difference in level
5
Operation temperature range
16℃-43℃
Ambient temperature range
16℃-48℃
Application area
10~20
